Client
Personal
RoleS
Research, Illustration, Design
Year
April 2020
Description

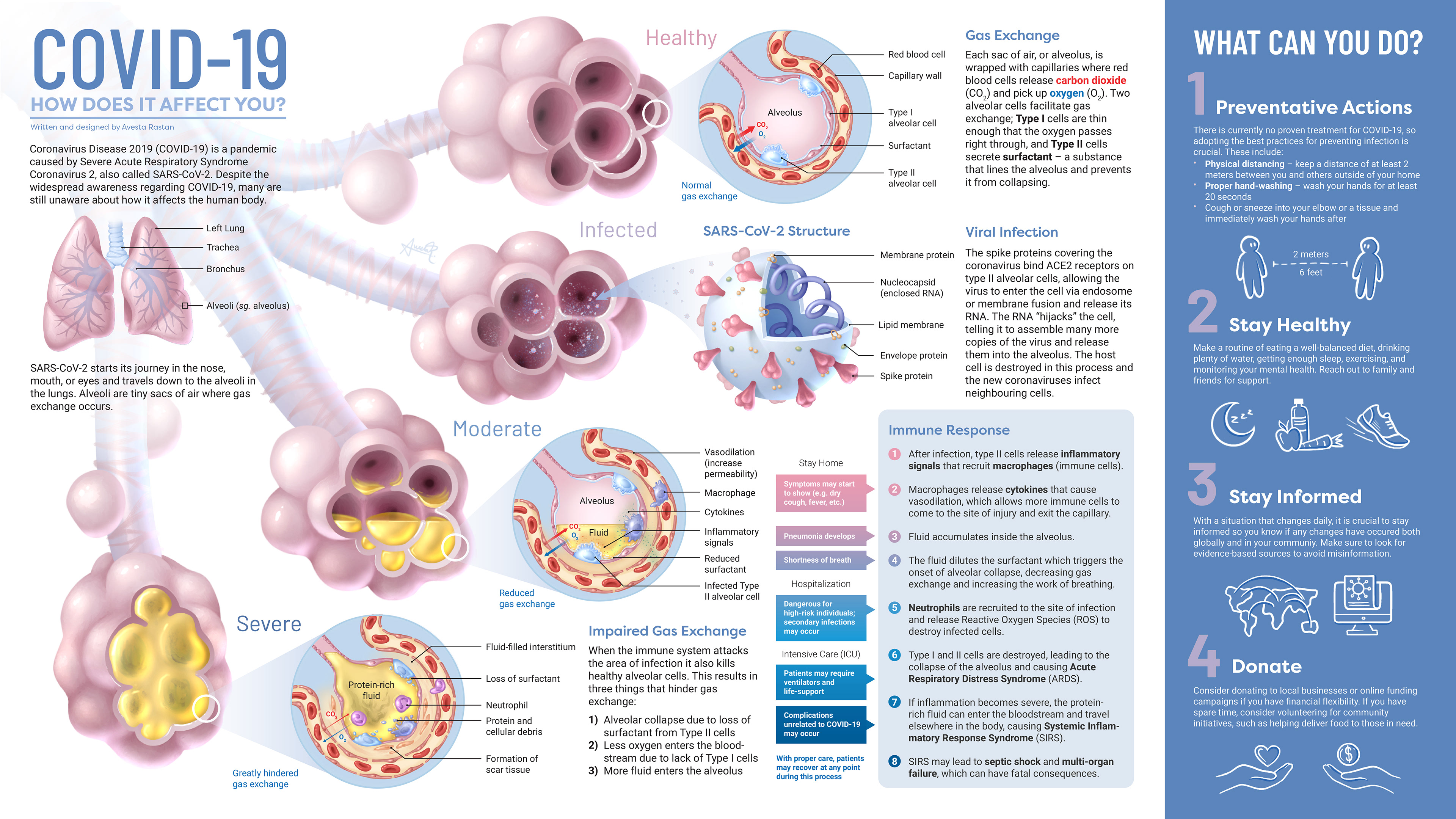

When the COVID-19 pandemic hit in March 2020, there was a frenzy of uncertainty about the future, an overwhelming amount of information and disinformation, and no clear visuals on how COVID-19 affected the body. I saw an opportunity to contribute to educational efforts and use my background in medical illustration to create an infographic. My main goals were to: 1) use evidence-based research to inform the public on how COVID-19 affects the body so that they take preventative measures, 2) to summarize current COVID-19 pathology and clinical information in a single, digestible infographic in order to engage and educate viewers.
We now know that COVID-19 has incredibly widespread effects throughout the body, and can culminate in chronic illnesses such as long COVID; however, at the time this was published, the main research was about pneumonia caused by COVID-19. This infographic was one of the first published on how COVID-19 affects human lungs. It was initially shared on Twitter, going viral and racking up over 2 million views. It has since been translated into 18 languages and shared around the globe.
![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/7801d705-3ad5-499b-a9a6-a8fa4682f2dd_rw_3840.jpg?h=647c9b2a935d9e1d51cb61df2512ab84)
Research & Ideation
To get started, I did a literature search on recently published papers about COVID-19. I collected any relevant information about its effects on the human body and cross-referenced research done on previous types of coronaviruses. I collected visual references to determine the most effective way to visualize pathology in the alveoli of the lungs. After gathering references and refining my content outline, I created various thumbnail sketches to explore different layout designs.
![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/3c97eb3a-8373-44c5-8212-7af33744c958_rw_3840.jpg?h=4f1c911ff81b1eac1a0d4f638a7d5480)

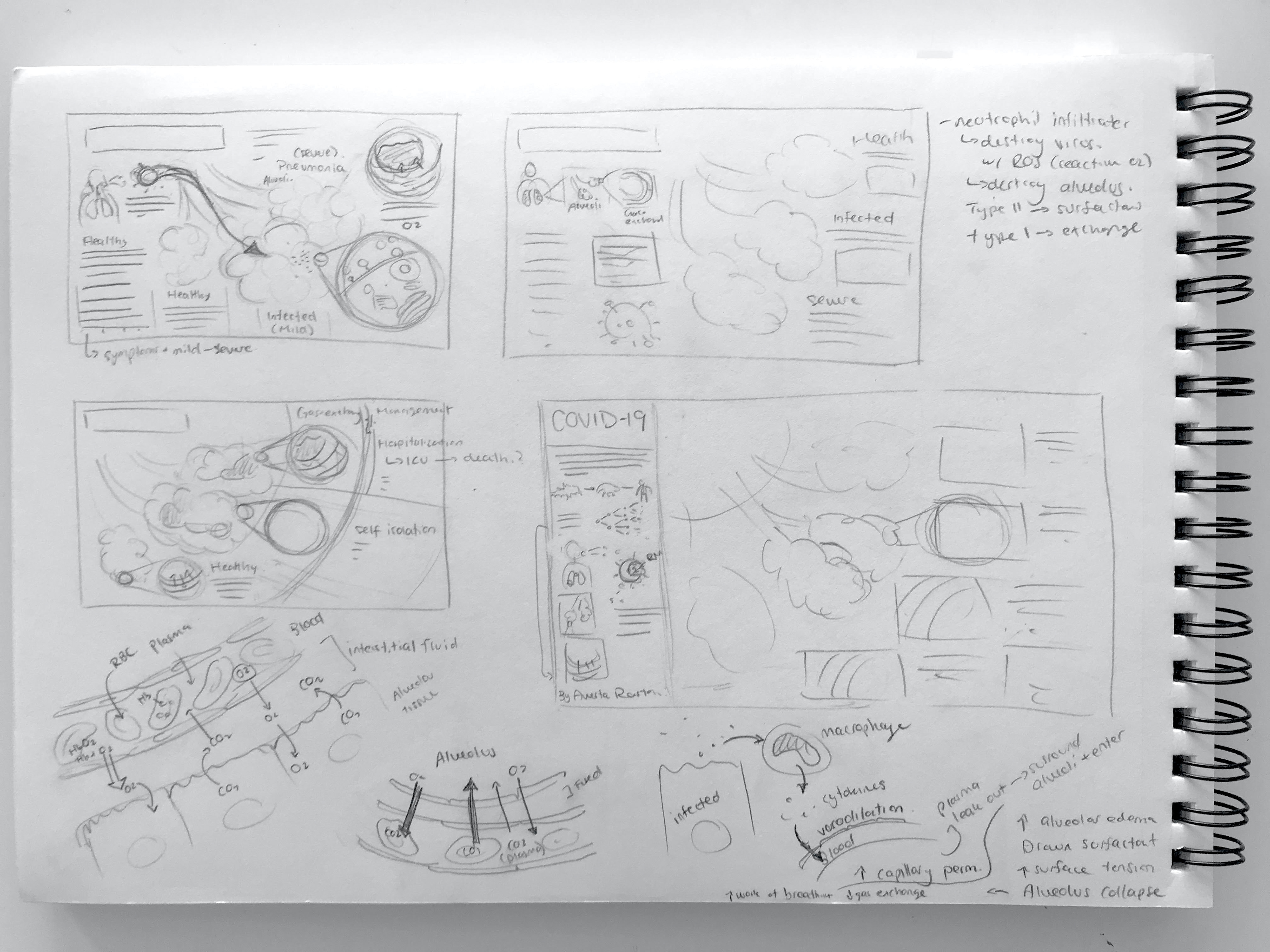

![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/31215fba-e175-4714-b969-4955635ed445_rw_3840.jpg?h=19f23641efb1395125111072deaeba3d)

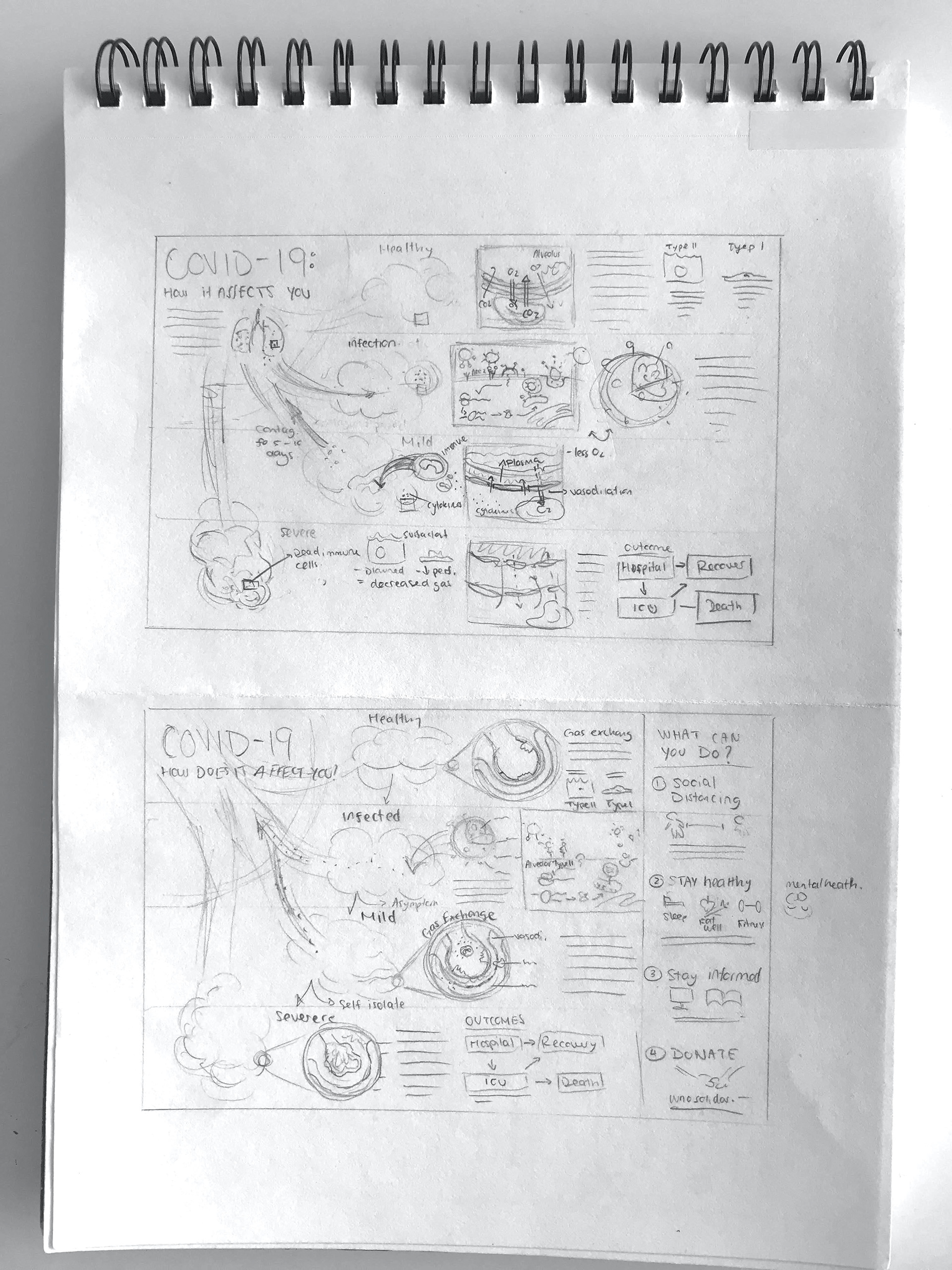

![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/5c5d980b-9187-4119-b8e8-9dcbef64ca6e_rw_1920.jpg?h=248cf8b88b6ff51471777d11b9d7f147)
![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/3d399428-d696-4aa1-ac89-7a127428a8c7_rw_3840.jpg?h=877f37dcb1838c532fd58bdfddf64e3f)
![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/1f5f9a66-ebe4-4298-acbe-45da70ea7558_rw_3840.png?h=c99ad90dc072cdb1fd3c876b272881a4)

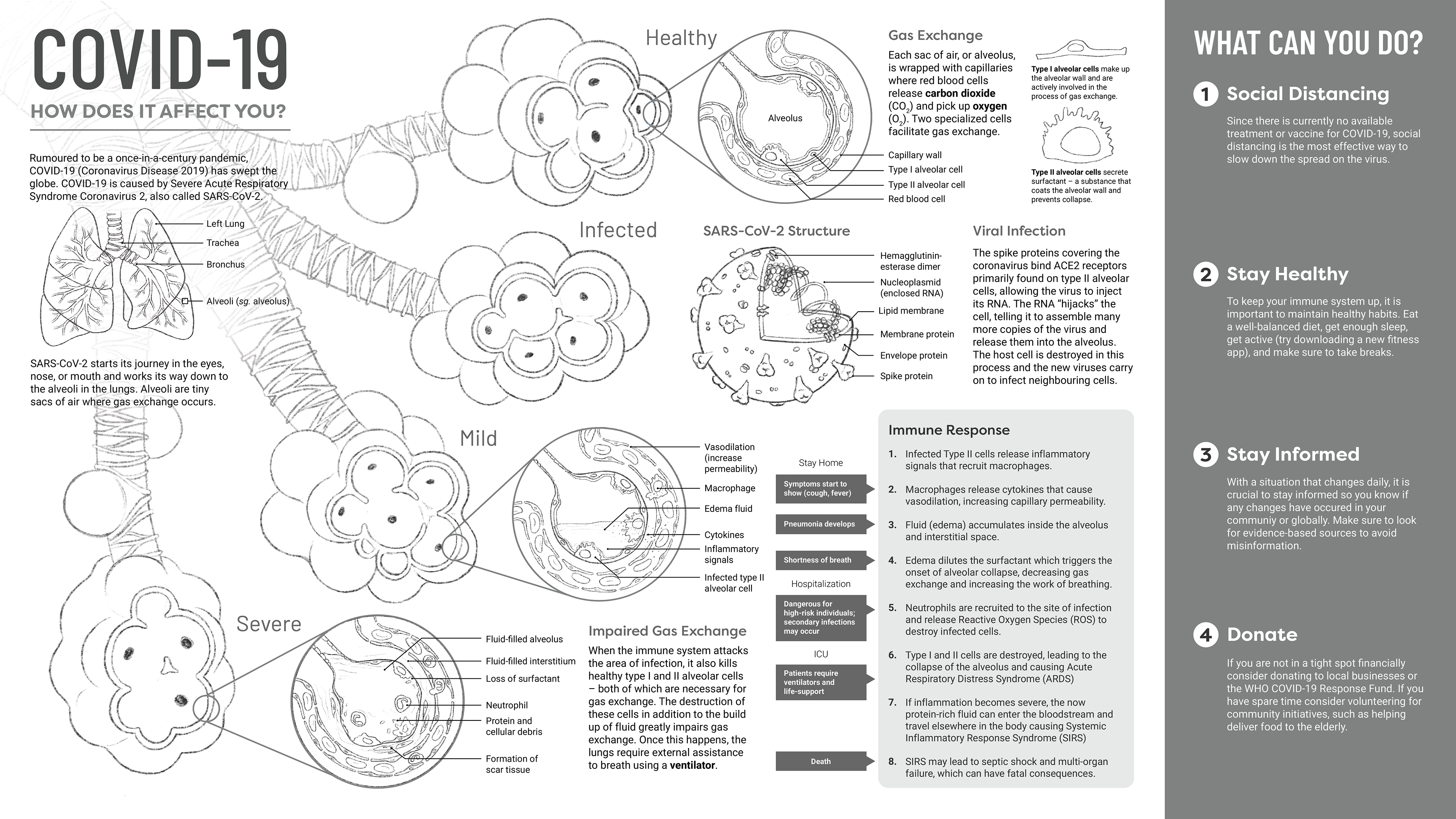

Story Flow
![](https://cdn.myportfolio.com/452c0281-51da-4528-a909-3316f12b9087/d83144a0-8db3-4d8a-930f-01d4c3f6f4a5_rw_1920.png?h=168b350e0319be06799756063b03eb12)

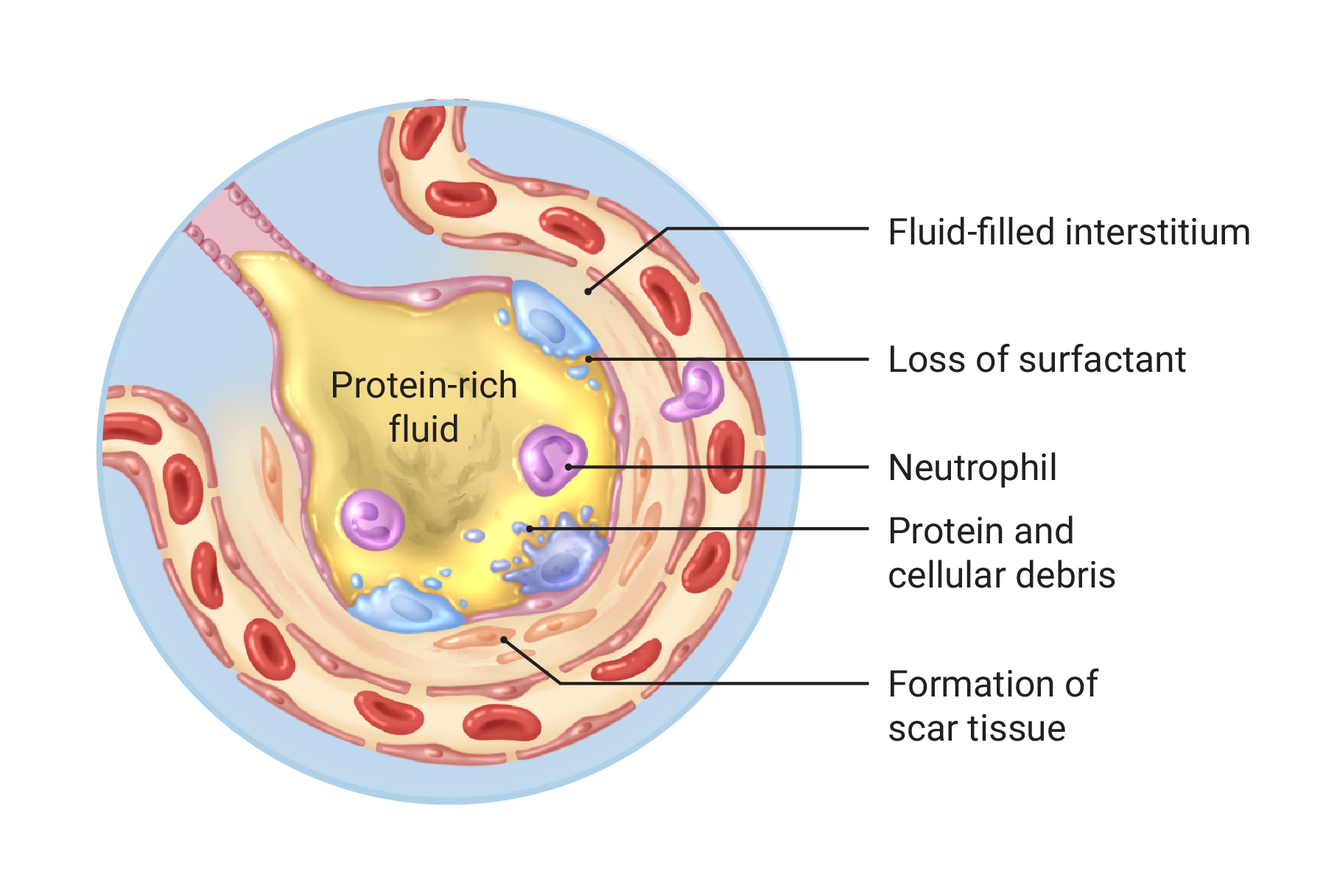

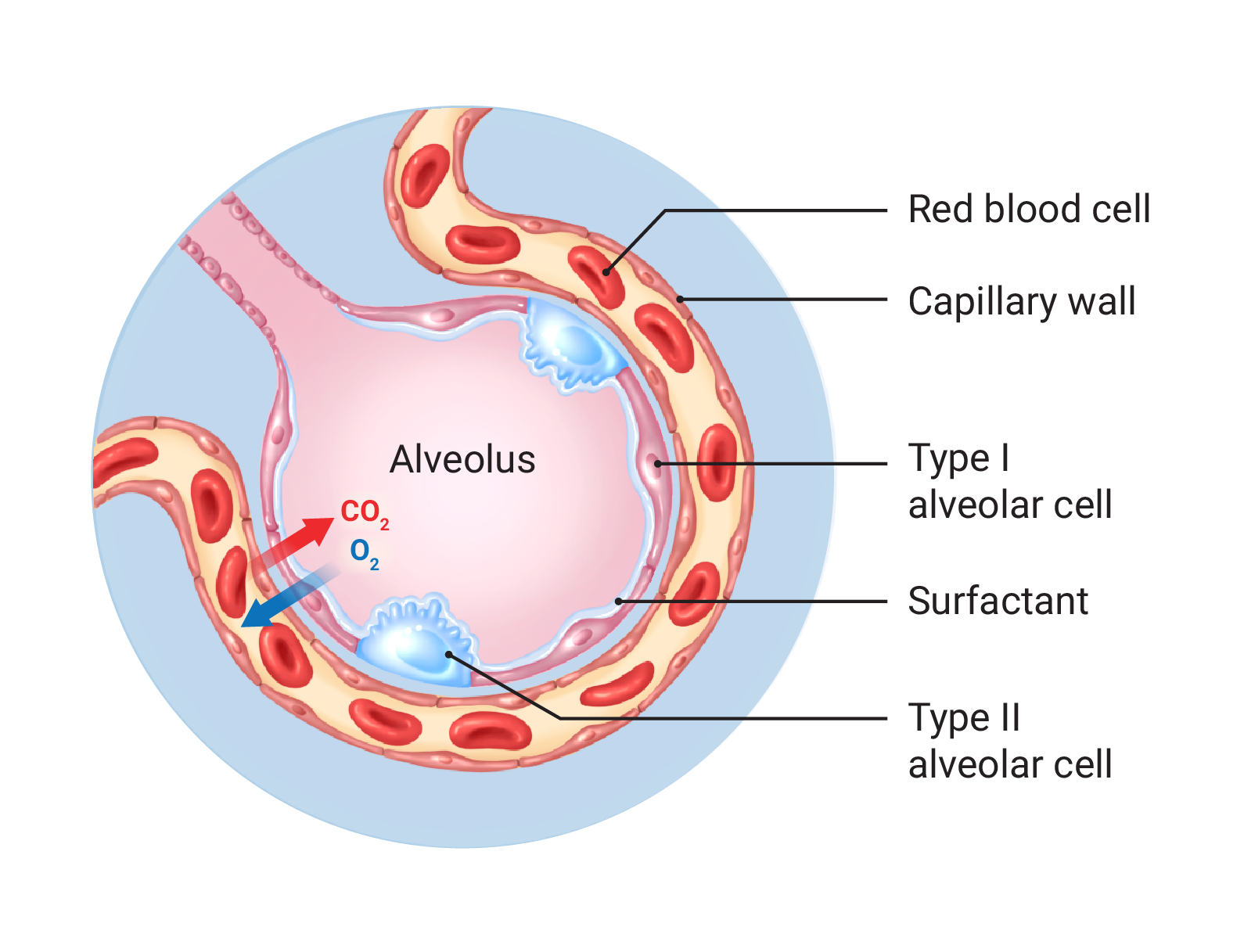

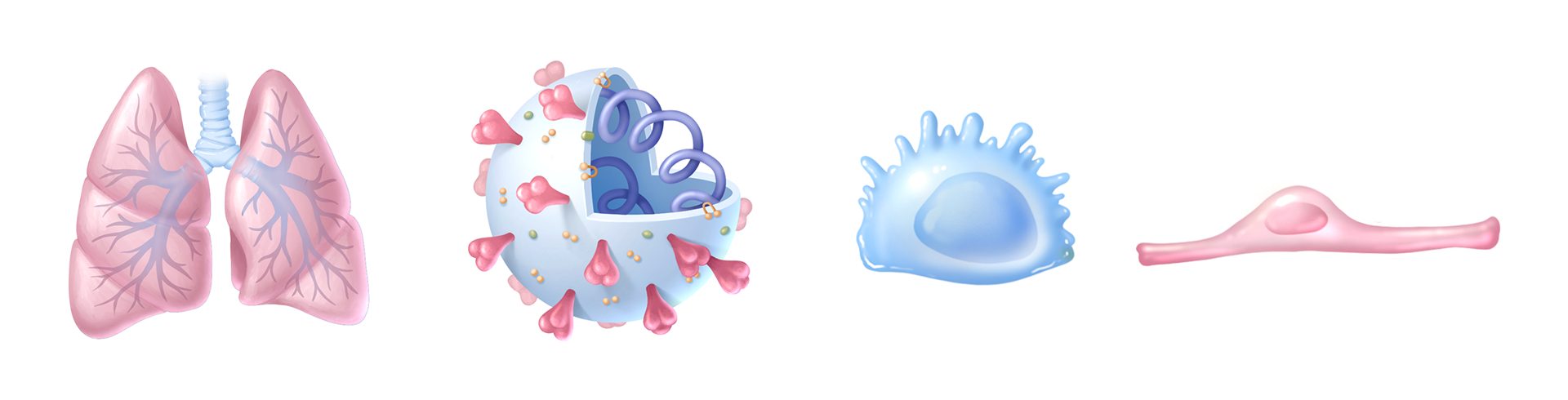

Rendering
The final images were illustrated using the iPad app, Procreate. After sharing it online via social media, I received a request from Discover Magazine to publish my piece as a special report in their first COVID-19 edition!
